Ch2 Lecture 2

Outline for today

• Discrete Dynamical Systems
• Graphs and Directed Graphs

Discrete Dynamical Systems

Definitions

Definition: A discrete linear dynamical system is a sequence of vectors \mathbf{x}^{(k)}, k=0,1, \ldots, called states, which is defined by an initial vector \mathbf{x}^{(0)} and by the rule

\mathbf{x}^{(k+1)}=A \mathbf{x}^{(k)}+\mathbf{b}_{k}, \quad k=0,1, \ldots

• A is a fixed square matrix, called the transition matrix of the system

• vectors \mathbf{b}_{k}, k=0,1, \ldots are called the input vectors of the system.

• If we don’t specify input vectors, assume that \mathbf{b}_{k}=\mathbf{0} for all k. Then call the system a homogeneous dynamical system.

Stability

An important question: is the system stable?

Does \mathbf{x}^{(k)} tend towards a constant state \mathrm{x}?

If system is homogeneous, then if a stable state is the initial state, it will equal all subsequent states.

Definition: A vector \mathbf{x} satisfying \mathbf{x}=A \mathbf{x}, for a square matrix A, is called a stationary vector for A.

If A is the transition matrix for a homogeneous discrete dynamical system, we also call such a vector a stationary state.

Example

• Two toothpaste companies compete for customers in a fixed market
• Each customer uses either Brand A or Brand B.
• Buying habits. In each quarter:
  • 30 \% of A users will switch to B, while the rest stay with A.
  • 40 \% of B users will switch to A , while the the rest stay with B.
• This is an example of a Markov chain model.

Let a_1 be the fraction of customers using Brand A at the end of the first quarter, and b_1 be the fraction using Brand B.

Then we have the following system of equations: \begin{aligned} a_{1} & =0.7 a_{0}+0.4 b_{0} \\ b_{1} & =0.3 a_{0}+0.6 b_{0} \end{aligned}

More generally,

\begin{aligned} a_{k+1} & =0.7 a_{k}+0.4 b_{k} \\ b_{k+1} & =0.3 a_{k}+0.6 b_{k} . \end{aligned}

In matrix form,

\mathbf{x}^{(k)}=\left[\begin{array}{c} a_{k} \\ b_{k} \end{array}\right] \text { and } A=\left[\begin{array}{ll} 0.7 & 0.4 \\ 0.3 & 0.6 \end{array}\right]

with

\mathbf{x}^{(k+1)}=A \mathbf{x}^{(k)}

We can continue into future quarters by multiplying by A again: \mathbf{x}^{(2)}=A \mathbf{x}^{(1)}=A \cdot\left(A \mathbf{x}^{(0)}\right)=A^{2} \mathbf{x}^{(0)}

In general,

\mathbf{x}^{(k)}=A \mathbf{x}^{(k-1)}=A^{2} \mathbf{x}^{(k-2)}=\cdots=A^{k} \mathbf{x}^{(0)} .

This is true of any homogeneous linear dynamical system!

For any positive integer k and discrete dynamical system with transition matrix A and initial state \mathbf{x}^{(0)}, the k-th state is given by

\mathbf{x}^{(k)}=A^{k} \mathbf{x}^{(0)}

Distribution vector and stochastic matrix

• \mathbf{x}^{(k)} of the toothpaste example are column vectors with nonnegative coordinates that sum to 1.
• Such vectors are called distribution vectors.
• Also, each of the columns the matrix A is a distribution vector.
• A square matrix A whose columns are distribution vectors is called a stochastic matrix.

Markov Chain definition

A Markov chain is a discrete dynamical system whose initial state \mathbf{x}^{(0)} is a distribution vector and whose transition matrix A is stochastic, i.e., each column of A is a distribution vector.

Think this through. - Suppose our current state is \mathbf{e}_{j} - The system has selected j th event exclusively.
- The next state is \mathbf{p}_{j}=P \mathbf{e}_{j}, that is, the j th column of P. - This implies that the entry p_{i j} is the probability that the i th event will occur, given that the j th event has just occurred. - Since events are mutually exclusive and some subsequent event must occur, the sum of these probabilities is 1 .

Checking that our toothpase example is a Markov chain

\mathbf{x}^{(k)}=\left[\begin{array}{c} a_{k} \\ b_{k} \end{array}\right] \text { and } A=\left[\begin{array}{ll} 0.7 & 0.4 \\ 0.3 & 0.6 \end{array}\right]

• The toothpaste example is a Markov chain:
  • The columns of A are distribution vectors.
  • The columns of A sum to 1.
  • The events in the example are mutually exclusive.

Stochastic Matrix Inequality

• We can define the 1-norm of a vector \mathbf{x} as \|\mathbf{x}\|_{1}=\sum_{i=1}^{n}\left|x_{i}\right|.
  • If all the elements of a vector are nonnegative, then \|\mathbf{x}\|_{1} is the sum of the elements.
• Can show: For any stochastic matrix P and compatible vector \mathbf{x},\|P \mathbf{x}\|_{1} \leq\|\mathbf{x}\|_{1}, with equality if the coordinates of \mathbf{x} are all nonnegative.
• → if a state in a Markov chain is a distribution vector (nonnegative entries and sums to 1), then the sum of the coordinates of the next state will also sum to one
• → all subsequent states in a Markov chain are themselves Markov Chain State distribution vectors.

Moving into the future

Suppose that initially Brand A has all the customers (i.e., Brand B is just entering the market). What are the market shares 2 quarters later? 20 quarters?

• Initial state vector is \mathbf{x}^{(0)}=(1,0).
• Now do the arithmetic to find \mathbf{x}^{(2)} : . . . \begin{aligned} {\left[\begin{array}{l} a_{2} \\ b_{2} \end{array}\right] } & =\mathbf{x}^{(2)}=A^{2} \mathbf{x}^{(0)}=\left[\begin{array}{ll} 0.7 & 0.4 \\ 0.3 & 0.6 \end{array}\right]\left(\left[\begin{array}{ll} 0.7 & 0.4 \\ 0.3 & 0.6 \end{array}\right]\left[\begin{array}{l} 1 \\ 0 \end{array}\right]\right) \\ & =\left[\begin{array}{ll} 0.7 & 0.4 \\ 0.3 & 0.6 \end{array}\right]\left[\begin{array}{l} 0.7 \\ 0.3 \end{array}\right]=\left[\begin{array}{l} .61 \\ .39 \end{array}\right] . \end{aligned}

Brand A will have 61 \% of the market and Brand B will have 39 \% of the market in the second quarter.

Toothpaste after many quarters

Now:

• find the state after 2 quarters.
• find the state after 20 quarters. Use matrix exponentiation: A**n
• Get specific numbers if toothpaste A has 100% of the market at the beginning. (Use sym.subs())
• Now what if toothpaste B has 100% at the beginning?

• Our calculation is reusable! Could go back after and then change the inital state.
• Notice that we also get the same result eventually, no matter where we started

Example: Structured Population Model

insect life stages

• Every week, 20% of the eggs die, and 60% move to the larva stage.
• Also, 10% of larvae die, 60% become adults
• 20% of adults die. Each adult produces 0.25 eggs.
• Initially we have 10k adults, 8k larvae, 6k eggs. How does the population evolve over time?

Set up \mathbf{x}^{(k)}=\left(a_{k}, b_{k}, c_{k}\right) \mathbf{x}^{(0)}=(10,8,6) at week 0 Note that after first week, we have 20% of the initial eggs (20% died, 60% became larvae…) Transition matrix is: A=\left[\begin{array}{ccc} 0.2 & 0 & 0.25 \\ 0.6 & 0.3 & 0 \\ 0 & 0.6 & 0.8 \end{array}\right]

What do we think will happen over time? How can we tell?

class InsectEvolution(BaseStateSystem):
    def __init__(self,transition_matrix=np.array([[.2,0,.25],[.6,.3,0],[0,.6,.8]]),max_y=10):
        self.steps = 10;
        self.t=0
        self.transition_matrix = transition_matrix
        self.max_y=max_y

    def initialise(self):
        self.x = np.array([6,8,10])
        self.Ya = []
        self.Yb = []
        self.Yc = []
        self.X = []

    def update(self):
        for _ in range(self.steps):
            self.t += 1
            self._update()

    def _update(self):
        self.x = self.transition_matrix.dot(self.x)

    def draw(self, ax):
        ax.clear()
        self.X.append(self.t)
        self.Ya.append(self.x[0])
        self.Yb.append(self.x[1])
        self.Yc.append([self.x[2]])
        ax.plot(self.X,self.Ya, color="r", label="Eggs")
        ax.plot(self.X,self.Yb, color="b", label="Larvae")
        ax.plot(self.X,self.Yc, color="g", label="Adults")
        ax.legend()

        ax.set_ylim(0,self.max_y)
        ax.set_xlim(0,200)
        ax.set_title("t = {:.2f}".format(self.t))

t1=np.array([[.2,0,.25],[.6,.3,0],[0,.6,.8]])
dying_insects = InsectEvolution(t1)
dying_insects.plot_time_evolution("insects.gif")

dying insects

t2=np.array([[.4,0,.45],[.5,.1,0],[0,.6,.8]])
living_insects = InsectEvolution(t2,200)
living_insects.plot_time_evolution("insects2.gif")

living insects

Graphs and Directed Graphs

Graph

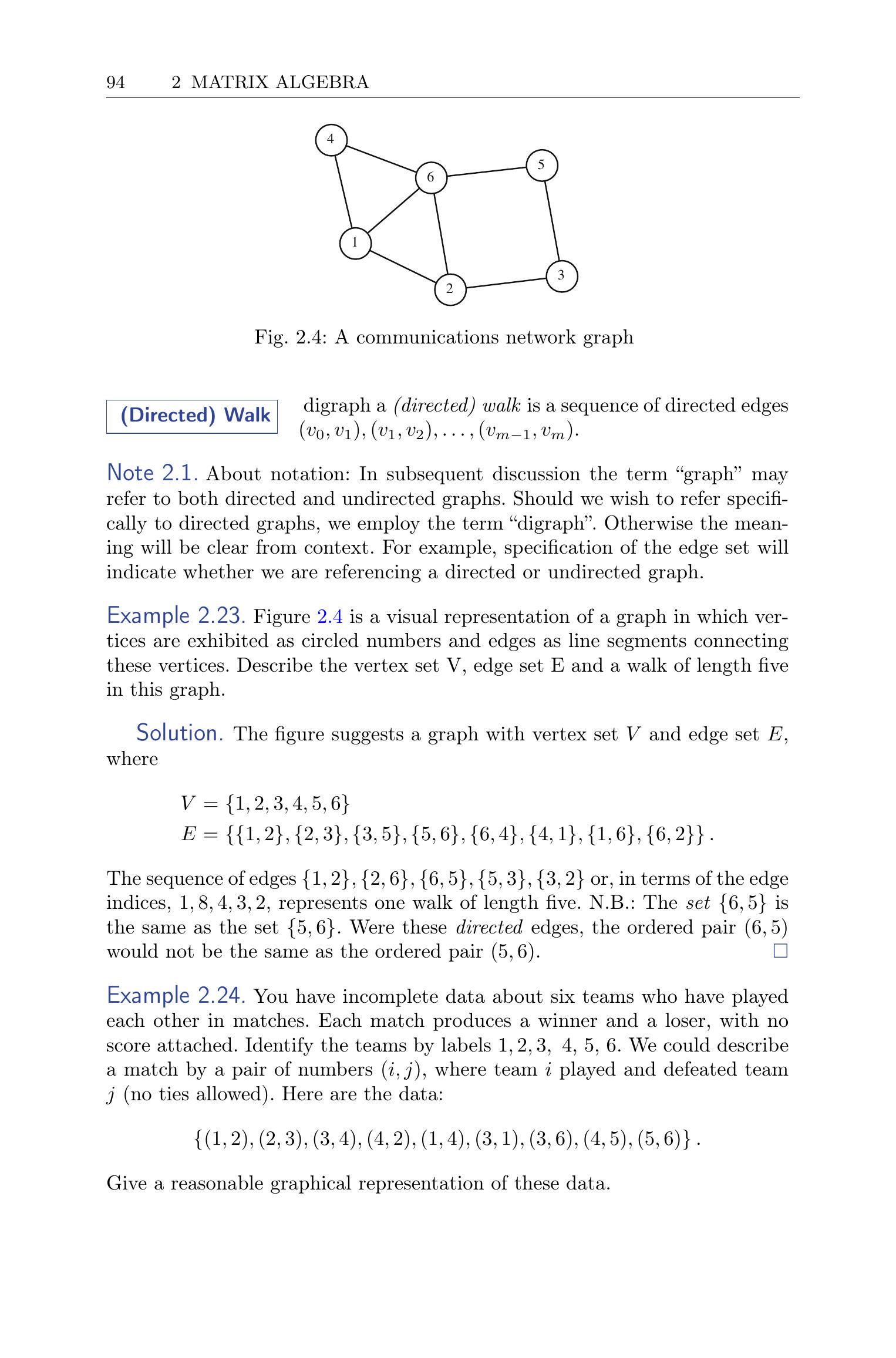

A graph is a set V of vertices (or nodes), together with a set or list E of unordered pairs with coordinates in V, called edges.

What are some things which can be represented with graphs?

Digraph

A directed graph (or “digraph”) has directed edges.

What are some things which can be represented with digraphs?

Walks

A walk is a sequence of edges \left\{v_{0}, v_{1}\right\},\left\{v_{1}, v_{2}\right\}, \ldots,\left\{v_{m-1}, v_{m}\right\} that goes from vertex v_{0} to vertex v_{m}.

The length of the walk is m.

A directed walk is a sequence of directed edges.

What is an example of what a walk tells us? Work through from one of the examples of graph or digraph that came up.

One example: how many people are in your extended network. “Six degrees of separation”…

Winning and losing

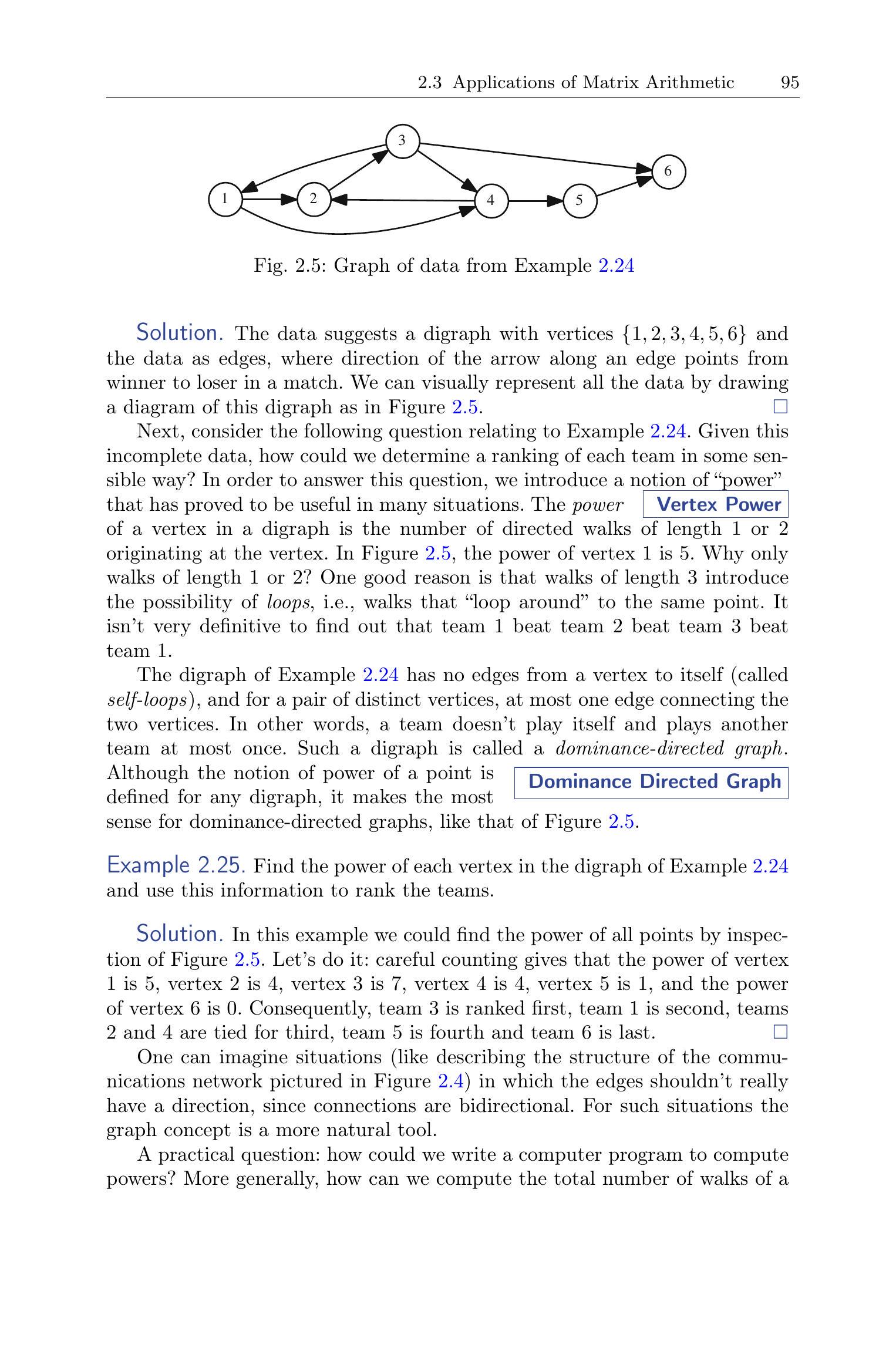

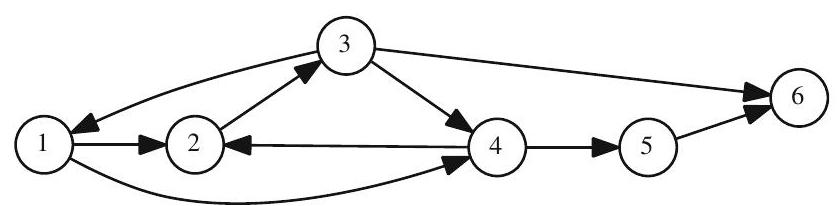

Suppose this represents wins and losses by different teams. How can we rank the teams?

Idea: a team which beats another team is good. Even better if the team they beat had beaten another team…

Idea: count the number of walks of length 1 or 2 originating from each vertex.

Have them do this…

Power of 1 is 5, vertex 2 is 4, vertex 3 is 7, vertex 4 is 4, vertex 5 is 1, and the power of vertex 6 is 0.

Power

Vertex power: the number of walks of length 1 or 2 originating from a vertex.

Makes most sense for graphs which don’t have any self-loops and at most one edge between nodes. These are called dominance directed graphs

How can we compute the number of walks for a given graph?

Adjacency matrix

Adjacency matrix: A square matrix whose (i, j) th entry is the number of edges going from vertex i to vertex j

• Edges in non-directed graphs appear twice (at (i,j) and at (j,i))
• Edges in digraphs appear only once

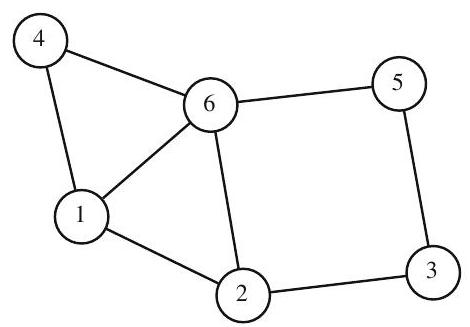

What is the adjacency matrix for this graph?

B=\left[\begin{array}{llllll} 0 & 1 & 0 & 1 & 0 & 1 \\ 1 & 0 & 1 & 0 & 0 & 1 \\ 0 & 1 & 0 & 0 & 1 & 0 \\ 1 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 1 & 0 & 0 & 1 \\ 1 & 1 & 0 & 1 & 1 & 0 \end{array}\right]

We can reconstruct the graph entirely from this matrix! It must have all the information encapsulated in it.

What is the adjacency matrix for this graph?

A=\left[\begin{array}{llllll} 0 & 1 & 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 \\ 1 & 0 & 0 & 1 & 0 & 1 \\ 0 & 1 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & 0 & 0 \end{array}\right]

Computing power from an adjacencty matrix

A=\left[\begin{array}{llllll} 0 & 1 & 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 \\ 1 & 0 & 0 & 1 & 0 & 1 \\ 0 & 1 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & 0 & 0 \end{array}\right]

How can we count the walks of length 1 emanating from vertex i?

Answer: Add up the elements of the i th row of A.

A=\left[\begin{array}{llllll} 0 & 1 & 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 \\ 1 & 0 & 0 & 1 & 0 & 1 \\ 0 & 1 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & 0 & 0 \end{array}\right]

What about walks of length 2?

Start by finding number of walks of length 2 from vertex i to vertex j.

a_{i 1} a_{1 j}+a_{i 2} a_{2 j}+\cdots+a_{i n} a_{n j} .

This is just the (i, j) th entry of the matrix A^{2}.

When is there an edge from i to k and then from k to j?

If the adjacency matrix has 1’s in both a_{i,k} and a_{k,j}.

Can represent this by the product…

So number of paths is the sum over k’s…

a_{i 1} a_{1 j}+a_{i 2} a_{2 j}+\cdots+a_{i n} a_{n j} .

This is just the (i, j) th entry of the matrix A^{2}.

Adjacency matrix and power

Result: The (i, j) th entry of A^{r} gives the number of (directed) walks of length r starting at vertex i and ending at vertex j.

Therefore: power of the i th vertex is the sum of all entries in the i th row of the matrix A+A^{2}.

Vertex power in our teams example

A+A^{2}=\left[\begin{array}{llllll} 0 & 1 & 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 \\ 1 & 0 & 0 & 1 & 0 & 1 \\ 0 & 1 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & 0 & 0 \end{array}\right]+\left[\begin{array}{llllll} 0 & 1 & 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 \\ 1 & 0 & 0 & 1 & 0 & 1 \\ 0 & 1 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & 0 & 0 \end{array}\right] \left[\begin{array}{llllll} 0 & 1 & 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 & 0 & 0 \\ 1 & 0 & 0 & 1 & 0 & 1 \\ 0 & 1 & 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & 0 & 0 \end{array}\right]

=\left[\begin{array}{llllll} 0 & 2 & 1 & 1 & 1 & 0 \\ 1 & 0 & 1 & 1 & 0 & 1 \\ 1 & 2 & 0 & 2 & 1 & 1 \\ 0 & 1 & 1 & 0 & 1 & 1 \\ 0 & 0 & 0 & 0 & 0 & 1 \\ 0 & 0 & 0 & 0 & 0 & 0 \end{array}\right] .

The sum of each row gives the vertex power.

How can you use multiplication to find the sum of each row?

Can multiply by a column of ones…

Now you try

Working together,

1. pick a topic (sports? elections?).
2. Look up data and make a graph or digraph.
3. Compute the adjacency matrix.
4. Find the vertex powers.

Do your results make sense in context?

Does it make sense?
